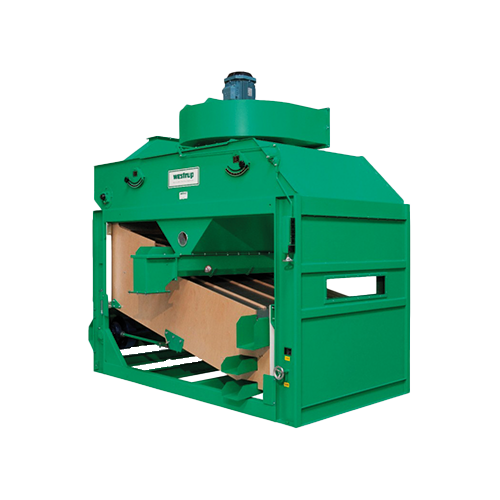

SAC
optimal silo separation
The SAC silo separator is ideally suited to dress malting barley and milling grain to the highest quality commercial sample at a reduced throughput
The SAC silo separator offers the following features:
Feeding section in construction with feed roll.
Aspiration chamber with one waste screw.
The screen system consists of one sieveboat with 1 short scalping screen layer (1 screen part) and 3 long grading/sand screen layers (2 screen parts).
All screen segments are rubber ball cleaned.
The machine has fixed speed drive and motors.
Incl. valve pipe.
Options:
Sacking-off pipes for rejects.
Prime product hopper, 160x160 mm.
Frame, 1000 mm. high.
Fan.
TECHNICAL SPECIFICATIONS
| SAC-1000 | SAC-1250 | SAC-1500 | |
|---|---|---|---|
| Screen size L=1000 mm x W | 1000 mm | 1250 mm | 1500 mm |
| Screen area | 7 m2 | 8.75 m2 | 10.50 m2 |
| Capacity | 30 t/h | 40 t/h | 50 t/h |
Capacity: based on non-organic wheat with a specific weight of 750kg/m3 with a maximum of 18% moisture content
