SP

Maximize Efficiency and Quality







      SP-1000
      SP-1250
      SP-1500
      SP-1750
      SP-2000
      SP-2500



      Screen size L = 1000 mm x W
      1000 mm
      1250 mm
      1500 mm
      1750 mm
      2 x 1000 mm
      2 x 1250 mm


      Standard sieveboat area
      16 m2
      20 m2
      24 m2
      28 m2
      32 m2
      40 m2


      Capacity
      Up to 100 t/h
      Up to 125 t/h
      Up to 150 t/h
      Up to 175 t/h
      Up to 200 t/h
      Up to 250 t/h


      Screen segments pcs.
      16 pcs.
      16 pcs.
      16 pcs.
      16 pcs.
      32 pcs.
      32 pcs.

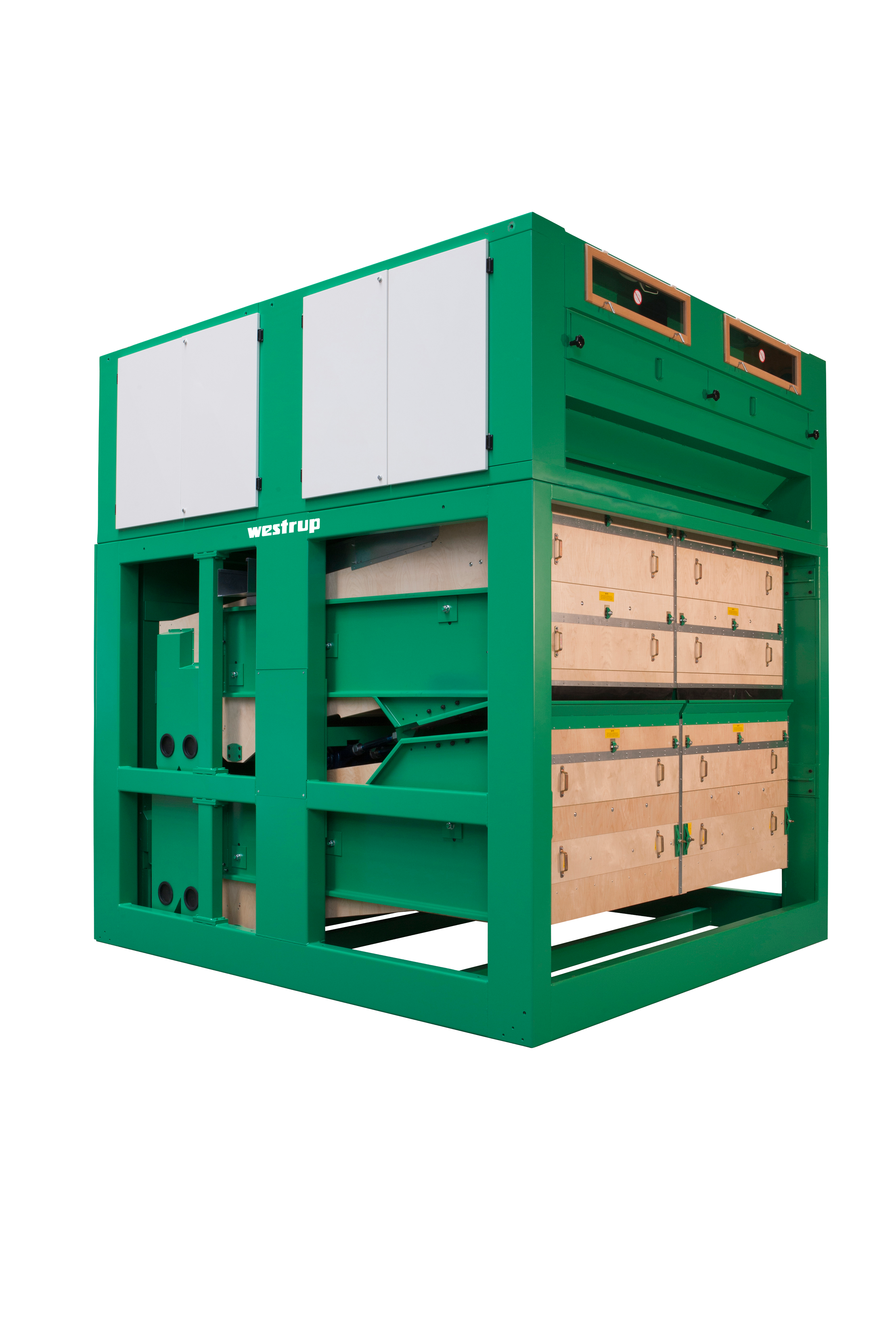

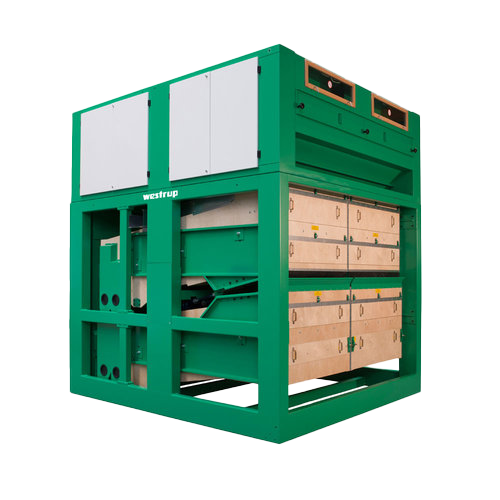

The SP High Capacity Modular Cleaner delivers powerful, high-throughput performance with unmatched versatility. Ideal for malting barley cleaning and sizing, pre-cleaning, market-grade, and food-grade applications, it ensures superior purity and optimized yield. Its modular design adapts to your operation—so you get maximum efficiency, flexibility, and results.

The SP modular cleaner offers the following features:

Inlet section with feed roll with fixed speed and gate with counterweight.
Aspiration section with preaspiration chamber and final aspiration chamber; both chambers with integrated screw.
Adjustable false air valve and remote control unit.
Screen section consisting of two sieveboats working in parallel with 50% product distribution to each sieveboat.
Each sieveboat with 4 screen layers with fixed inclination of 8 °/11 °.
All screen segments with rubber ball cleaning.
Integrated outlets for removed product.
Final aspiration channel with fixed depth and inspection window.
Prime product outlet placed under the machine for the entire width of the sieveboat.
Fixed drive and motors.

Options:

Inlet section with feed roll with gate with spring; with gear variator; with servomotor for gate regulation.
Final aspiration channel with built-in illumination.
Screen section enclosed with doors.
Several possibilities for screen inclination.
Quick change and/or interlock screens.
Variable drive with frequency converter.
Adaptive aspiration control system.
Fan with motor.

For other variations of the SP modular cleaner to suit your specific requirements, ask one of our specialists.

Download specefication sheet

Get a quote

TECHNICAL SPECIFICATIONS


      SP-1000
      SP-1250
      SP-1500

      Standard sieveboat area
      16 m2
      20 m2
      24 m2

      Capacity
      Up to 100 t/h
      Up to 125 t/h
      Up to 150 t/h

      Screen segments pcs.
      16 pcs.
      16 pcs.
      16 pcs.


      SP-1750
      SP-2000
      SP-2500

      Standard sieveboat area
      28 m2
      32 m2
      40 m2

      Capacity
      Up to 175 t/h
      Up to 200 t/h
      Up to 250 t/h

      Screen segments
      16 pcs.
      32 pcs.
      32 pcs.

Capacity: based on non-organic wheat with a specific weight of 750kg/m³ with a maximum of 18% moisture content
